FORD TRANSIT 2.2 TDCI DURATORQ FWD ENGINE REBUILD KIT | 2011-2018 (APX-ENGINEKIT2B-C)

£ 455.00
Part Number: APX-ENGINEKIT2B-C
Availability: In Stock
Category: REBUILD KIT
Vehicles: FORD
APEX AUTO PARTS

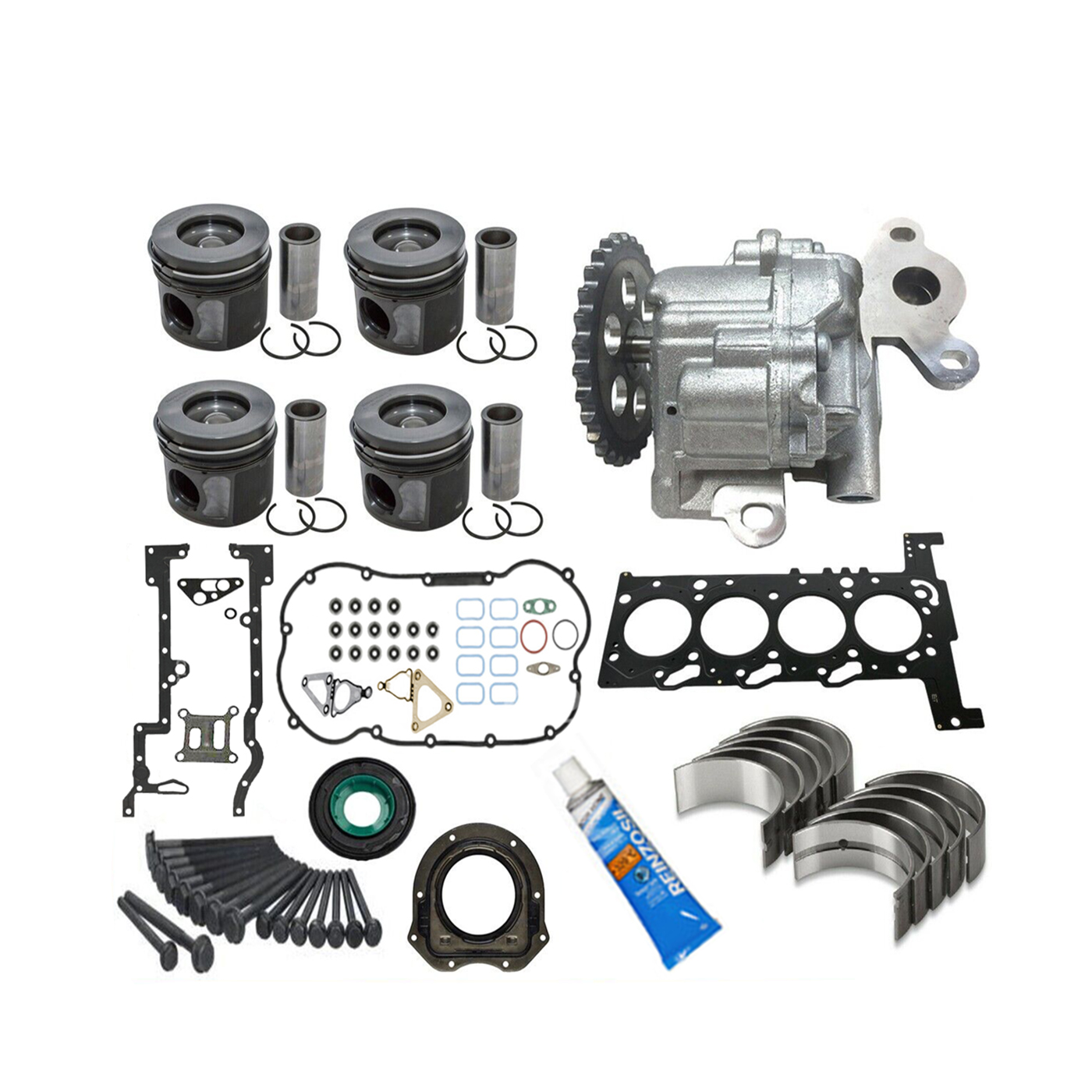

Parts Included in Kit:
4 Pistons, Including Piston Rings, Circlips and Gudgeon Pin
Big End Conrod Bearings Set
Main Crankshaft Bearings, Includes Flanged Bearing
Full Engine Gasket Set
Oil Pump


The Gasket Set includes the following
Cylinder Head Gasket - 1.2mm Thick = 3 Notch / 3 Holes
Cylinder Head Bolts
Valve Stem Oil Seals
Injector Washers
Inlet Manifold Gasket
Exhaust Manifold Gasket
Rocker Cover Gasket (Valve Cover Gasket)
Front Crankshaft Oil Seal
Rear Main Crankshaft Oil Seal
Sump Gasket
Various Other Gaskets, Seals and Washers for the Cylinder Head and Engine Block.


Piston Dimensions:
Size: STD
Bore Size - 86.00mm
Suitable for Tapered Conrod
Oil Cooled
Pin Diameter - 30mm
Pin Length - 66.85mm
Bowl Diameter - 48.9mm
Bowl Depth - 15.85mm
Overall Length - 74.82mm
Rings - 2mm / 2mm / 2mm
Compression Height - 48.42mm

YOU MUST CHECK THE PISTON LENGTH
This Kit Includes Pistons with an Overall Length of 74.82mm

  • FORD: CVFF, CVR5, CVRA, CVRB, CVRC, CY24, CYF5, CYFA, CYFB, CYFF, CYR5, CYRA, CYRB, DRF4, DRF5, DRFA, DRFB, DRFC, DRFD, DRFE, DRFF, DRFG, DRR5, DRRA, DRRB, DRRC, ENSA, GBVAJPF, GBVAJQJ, H9FB, H9FD, JXFA, JXFC, P5-AT, P8FA, P8FB, PGFA, PGFB, PHFA, PHFC, QVFA, QWFA, SA2R, SA2S, SA2W, SAFA, SAFB, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA, UHFB, UHFC, USRA
  • FORD: 1099772, 1099876, 1143673, 1143842, 1214454, 2S7Q 6333 AA, 2S7Q 6A338 AA, 2S7Q 6W332 AA, XS7Q 6333 AB, XS7Q 6337 AB, XS7Q 6A338 AC, XS7Q 6W331 AB, XS7Q 6W332 AB, 9569148180, 1719368, 1717570, 1738483, 1839456, BK2Q-6600-AC, BK2Q-6600-BA, BK2Q-6600-BB, BK2Q-6600-CA BK2Q-6L630-AA, 1096255, 1112956, 1117948, 1134856, 1146956, 1355193, 1456884, 1C1Q-6600-CD, 1C1Q-6600-CE, 1C1Q-6600-CF, 1C1Q-6600CG, 1C1Q6600CC, YC1Q-6600-CB, YC1Q-6600-CD, BK2Q6600AC, BK2Q6600BA, BK2Q6600BB, BK2Q6600CA, 1704089, T207512, BK3Q6268AA, 6C1Q6M256BB, 6C1Q6K261AB, CK3Q6M256BA, BK2Q6K254AB, BK3Q6M256AA, 6C1Q6306AB, 6C1Q6256AC, BK3Q9P919AD, 1753161, CK3Q6M256AA, 1753155. 1704089, 1704049, 1372438, 1704066, 1372434, 1465148, 1682478, 1576366, 1717658, 1 372 438, 1 372 438 S1, 1 704 049, 1 704 049 S1, 1 704 066, 1 704 066 S1, 1 704 089, 1 704 089 S1, 1 753 155, 1 753 155 S1, 1 753 161, 1 753 161 S1, BK2Q-6K254-AB, BK2Q-6K254-AB S1, BK2Q-6K261-AA, BK2Q-6K261-AA S1, BK3Q-6268-AA, BK3Q-6268-AA S1, CK3Q-6M256-AA, CK3Q-6M256-AA S1, CK3Q-6M256-BA, CK3Q-6M256-BA S1, 6C1Q-6M256-BB, 6C1Q-6M256-BB S1
  • 573.370, RS0054, HS1468NH, BM1020-STD, BM1038-STD, BB2025-STD, BB2069-STD, FP315, OP243, OP315, TCK130RWD, PR68-000, 107154, 172446, D38705-00, H1018/5 STD, 08-427700-00, 2D7451, 33 10 1335, 50 10 7154, 02-42374-02, WG1240932, WG1703731, WG1754719, WG1093841, WG1307229, WG1475267, WG1938619, WG2112095
User Rating

0.00 average based on 0 reviews.

FORD
Description Year of construction KW HP CC
RANGER (TKE): 2.2 TDCi 04.2011 - 88 120 2198
RANGER (TKE): 2.2 TDCi 11.2011 - 110 150 2198
RANGER (TKE): 2.2 TDCi 4x4 04.2011 - 110 150 2198
RANGER (TKE): 2.2 TDCi 4x4 05.2015 - 118 160 2198
RANGER (TKE): 3.2 TDCi 4x4 04.2011 - 147 200 3198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 04.2006 - 08.2014 63 85 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 10.2011 - 08.2014 74 100 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi RWD 10.2011 - 08.2014 74 100 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 04.2006 - 08.2014 81 110 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 10.2008 - 08.2014 85 115 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 10.2011 - 08.2014 92 125 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi RWD 09.2011 - 12.2014 92 125 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 04.2006 - 08.2014 96 130 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi RWD 09.2011 - 08.2014 100 135 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.2 TDCi 10.2007 - 08.2014 103 140 2198
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 04.2006 - 08.2014 74 100 2402
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 04.2006 - 08.2014 85 115 2402
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 04.2006 - 08.2014 103 140 2402
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 4x4 11.2006 - 08.2014 103 140 2402
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 3.2 TDCi 02.2008 - 08.2014 147 200 3199
TRANSIT TOURNEO: 2.2 TDCi 07.2006 - 08.2014 81 110 2198
TRANSIT TOURNEO: 2.2 TDCi 10.2008 - 08.2014 85 115 2198
TRANSIT TOURNEO: 2.2 10.2011 - 08.2014 92 125 2198
TRANSIT TOURNEO: 2.2 TDCi 07.2006 - 08.2014 96 131 2198
TRANSIT TOURNEO: 2.2 TDCi 10.2007 - 08.2014 103 140 2198
TRANSIT Box (FA_ _): 2.2 TDCi 04.2006 - 08.2014 63 85 2198
TRANSIT Box (FA_ _): 2.2 TDCi 10.2011 - 08.2014 74 100 2198
TRANSIT Box (FA_ _): 2.2 TDCi RWD 10.2011 - 08.2014 74 100 2198
TRANSIT Box (FA_ _): 2.2 TDCi 04.2006 - 08.2014 81 110 2198
TRANSIT Box (FA_ _): 2.2 TDCi 10.2008 - 08.2014 85 115 2198
TRANSIT Box (FA_ _): 2.2 TDCi 10.2011 - 08.2014 92 125 2198
TRANSIT Box (FA_ _): 2.2 TDCi RWD 09.2011 - 12.2014 92 125 2198
TRANSIT Box (FA_ _): 2.2 TDCi 4x4 10.2011 - 08.2014 92 125 2198
TRANSIT Box (FA_ _): 2.2 TDCi 04.2006 - 08.2014 96 130 2198
TRANSIT Box (FA_ _): 2.2 TDCi RWD 10.2011 - 08.2014 100 136 2198
TRANSIT Box (FA_ _): 2.2 TDCi 10.2007 - 08.2014 103 140 2198
TRANSIT Box (FA_ _): 2.2 TDCi RWD 10.2011 - 08.2014 114 155 2198
TRANSIT Box (FA_ _): 2.4 TDCi RWD 04.2006 - 08.2014 74 100 2402
TRANSIT Box (FA_ _): 2.4 TDCi RWD 04.2006 - 08.2014 85 115 2402
TRANSIT Box (FA_ _): 2.4 TDCi RWD 04.2006 - 08.2014 103 140 2402
TRANSIT Box (FA_ _): 2.4 TDCi 4x4 11.2006 - 08.2014 103 140 2402
TRANSIT Box (FA_ _): 3.2 TDCi RWD 09.2007 - 08.2014 147 200 3199
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 04.2006 - 08.2014 63 85 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 10.2011 - 08.2014 74 100 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi RWD 10.2011 - 08.2014 74 100 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 04.2006 - 08.2014 81 110 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 10.2008 - 08.2014 85 115 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 10.2011 - 08.2014 92 125 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi RWD 10.2011 - 08.2014 92 125 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 4x4 10.2011 - 08.2014 92 125 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 04.2006 - 08.2014 96 130 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi 10.2007 - 09.2011 103 140 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.2 TDCi RWD 10.2011 - 08.2014 114 155 2198
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.4 TDCi RWD 04.2006 - 08.2014 74 100 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.4 TDCi RWD 04.2006 - 08.2014 85 115 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.4 TDCi RWD 04.2006 - 08.2014 103 140 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.4 TDCi 4x4 11.2006 - 08.2014 103 140 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _): 3.2 TDCi RWD 09.2007 - 08.2014 147 200 3199
TOURNEO CUSTOM V362 Bus (F3): 2.2 TDCi 04.2012 - 74 100 2198
TOURNEO CUSTOM V362 Bus (F3): 2.2 TDCi 04.2012 - 92 125 2198
TOURNEO CUSTOM V362 Bus (F3): 2.2 TDCi 04.2012 - 114 155 2198
TRANSIT CUSTOM V362 Bus (F3): 2.2 TDCi 04.2012 - 74 100 2198
TRANSIT CUSTOM V362 Bus (F3): 2.2 TDCi 04.2012 - 92 125 2198
TRANSIT CUSTOM V362 Bus (F3): 2.2 TDCi 04.2012 - 114 155 2198
TRANSIT CUSTOM V362 Box (FY, FZ): 2.2 TDCi 04.2012 - 74 100 2198
TRANSIT CUSTOM V362 Box (FY, FZ): 2.2 TDCi 04.2012 - 92 125 2198
TRANSIT CUSTOM V362 Box (FY, FZ): 2.2 TDCi 04.2012 - 114 155 2198
TRANSIT V363 Bus (FAD, FBD): 2.2 TDCi RWD 08.2013 - 74 100 2198
TRANSIT V363 Bus (FAD, FBD): 2.2 TDCi 08.2013 - 74 100 2198
TRANSIT V363 Bus (FAD, FBD): 2.2 TDCi RWD 08.2013 - 92 125 2198
TRANSIT V363 Bus (FAD, FBD): 2.2 TDCi 08.2013 - 92 125 2198
TRANSIT V363 Bus (FAD, FBD): 2.2 TDCi 4x4 08.2013 - 92 125 2198
TRANSIT V363 Bus (FAD, FBD): 2.2 TDCi RWD 08.2013 - 114 155 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi 08.2013 - 74 100 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi RWD 08.2013 - 74 100 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi 08.2013 - 92 125 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi RWD 08.2013 - 92 125 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi 4x4 08.2013 - 92 125 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi RWD 08.2013 - 114 155 2198
TRANSIT V363 Box (FCD, FDD): 2.2 TDCi 4x4 08.2015 - 114 155 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi 08.2013 - 74 100 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi RWD 08.2013 - 74 100 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi 08.2013 - 92 125 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi RWD 08.2013 - 92 125 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi 4x4 08.2013 - 92 125 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi RWD 08.2013 - 114 155 2198
TRANSIT V363 Platform/Chassis (FED, FFD): 2.2 TDCi 4x4 08.2013 - 114 155 2198
